Roof hatches Skylight Loft
Skylight Loft roof hatches are characteristic for their straight classic profile geometry. They ensure easy and safe exit to the roof.
Energy efficiency
- 2-pane package
- straight classic PVC profile
- Uw = 1,8 W/m2 K
Material
- lead-free PVC
- steel reinforcement
Opening
- manual-lateral
- the possibility of opening to the right or left side of the roof
Handle
- 1 position of passive ventilation
Advantages:
- Roof hatches have high thermal insulation parameters dedicated to rooms which are not heated but it does not exclude their use in heated rooms. Uw = 1.8 W/m2K.
- Functionality. Owing to the possibility of opening to the right or to the left of the roof, they ensure easy exit to the roof.
- The roof hatch opened to the side has an opening/closing lock which ensures a slash position opened by 90° which allows for safe exiting to the roof.
- A system of four seals resistant to low temperatures ensures the perfect tightness of Skylight roof hatch.
-
Parameters
-

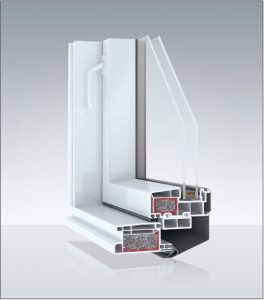

Cross-section
-
-
Colours
-
Color of the window frame
Pure White
Colors of facings and sealing flanges
RAL 7043
RAL 8019
-
Dimensions
-
Installation
Heat transfer coefficient
Uw = 1,8 W/m²K
Window pane heat transfer coefficient
Ug = 1,1 W/m²K
Acoustic insulation
33 dB
Air permeability
class No. 4
Water tightness class
class No. E1200
Wind load resistance
class No. C3/B3
|
Color of the window frame
Pure White
Colors of facings and sealing flanges
RAL 7043
RAL 8019
| 4/7 450x730 | |
| 5/7 550x780 | 5/9 550x980 |
| 6/9 660x980 | |
| 7/9 780x980 |
Installation instructions
